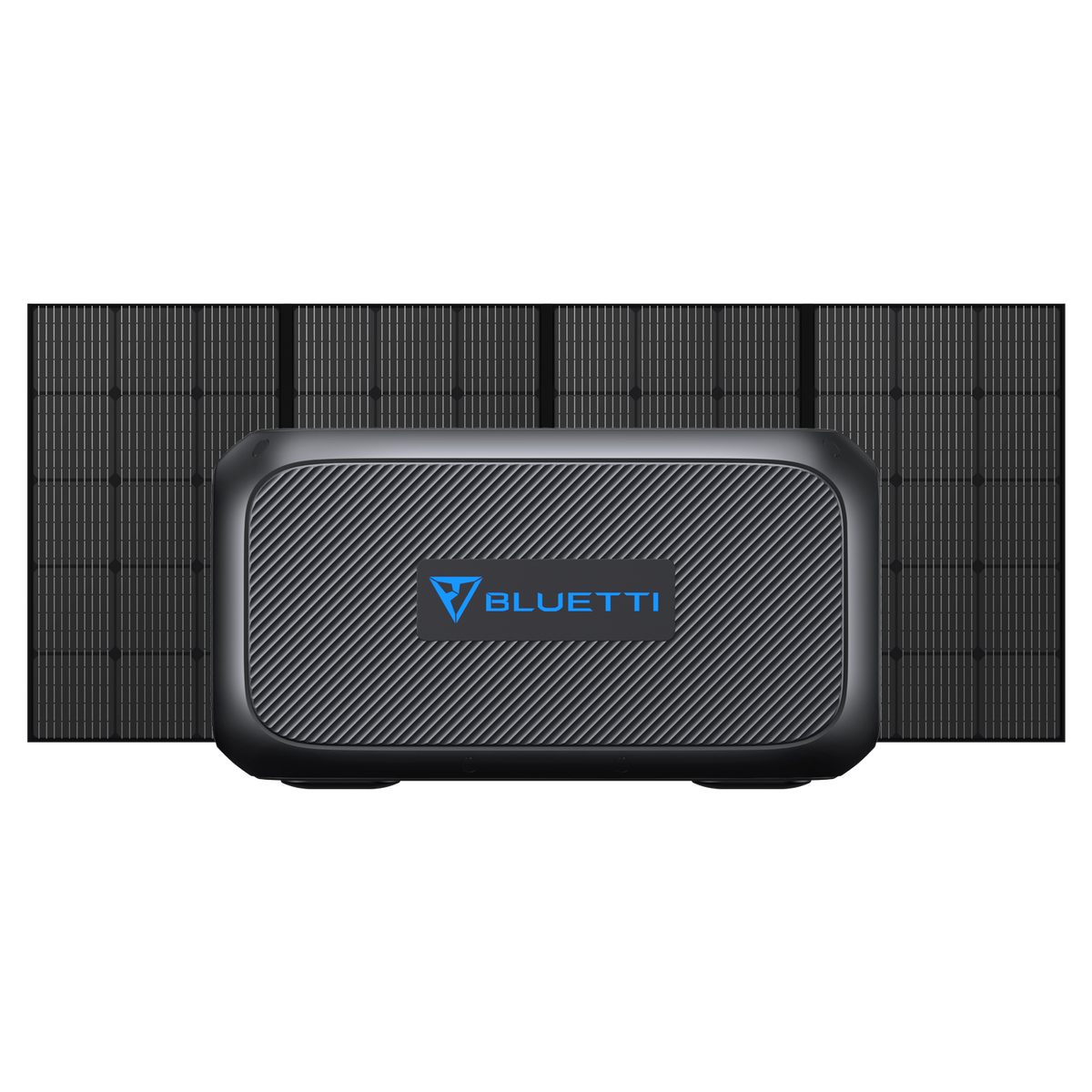

BLUETTI B230 + Solar Panels | Solar Generator Kit

FAQS

• Q1: Which BLUETTI power stations can work with B230?

  A:

  AC200MAX/AC200/AC200P/EB150/EB240/EP500Pro.

  Aditional accessories are required for each power station.

  AC200P: P090D to XT90 cable

  EB150: P090D to DC7909 cable

  EP500Pro: P090D to MC4 cable

• Q2: How many B230 can I connect to AC200MAX?

  A:

  Up to 2 B230 for 6,144Wh capacity.

• Q3: Can I use BLUETTI B230 expansion battery alone?

  A:

  Yes. It comes with a 100W USB-C, a USB-A, and a 12V car socket, providing power for phones, laptops, car refrigerators, etc.

• Q4: Does B230 support App control?

  A:

  Connect it to the AC200MAX, pair them with BLUETTI App, and you can control the system at any time from anywhere.

• Q5: Can I use B230 alone as a UPS?

  A:

  No.

• Q6: Can I use car cigaretter lighter or lead-acid battery to charge B230?

  A:

  Yes, BLUETTI D050S DC Charging Enhancer* is required. * Sold separately

• Q7: What are the charging methods for the BLUETTI B230?

  A:

  Yes, if the solar panels' specs fall in

  1) 500W AC adapter (Sold separately)

  2) Car cigarette lighter output or solar panels (Require the BLUETTI D050S - DC charging enhancer, sold separately).
  Notice: There is only one inlet on the battery module, so it cannot be charged by more than one charge method simultaneously.

  3) Include MC4 connectors.

• Q8: Can it charge and discharge at the same time?

  A:

  Yes.

• Q9: Can I use or charge B230 in sub-zero temperatures?

  A:

  Temperature ranges for B300 are:

  Charge: 0-40℃ (32-104℉);

  Discharge: -20-40℃ (-4-104℉);

  Storage: -20-40℃ (-4-104℉).

  Technically, it can power electrical devices under such situations, but please avoid charging it.

• Q10:How long can it run my device?

  A:

  Running time = Battery capacity × DoD × η ÷ Device rated power

  DoD refers to Depth of Discharge and η is local inverter efficiency.

  For B230, both DoD and η are 90%. If you run a 100W light bulb with it, the running time will be:

  2,048Wh × 90% × 90% ÷ 100W ≈ 16.5hrs

  Note: The above data is for reference ONLY.

• Q11: Is B230 waterproof?

  A:

  No. Also, please do NOT store it in a humid environment for a long time.

• Q12: Is it possible to replace the built-in battery?

  A:

  No. If the battery pack is faulty or even dead, please contact BLUETTI Customer Service.
