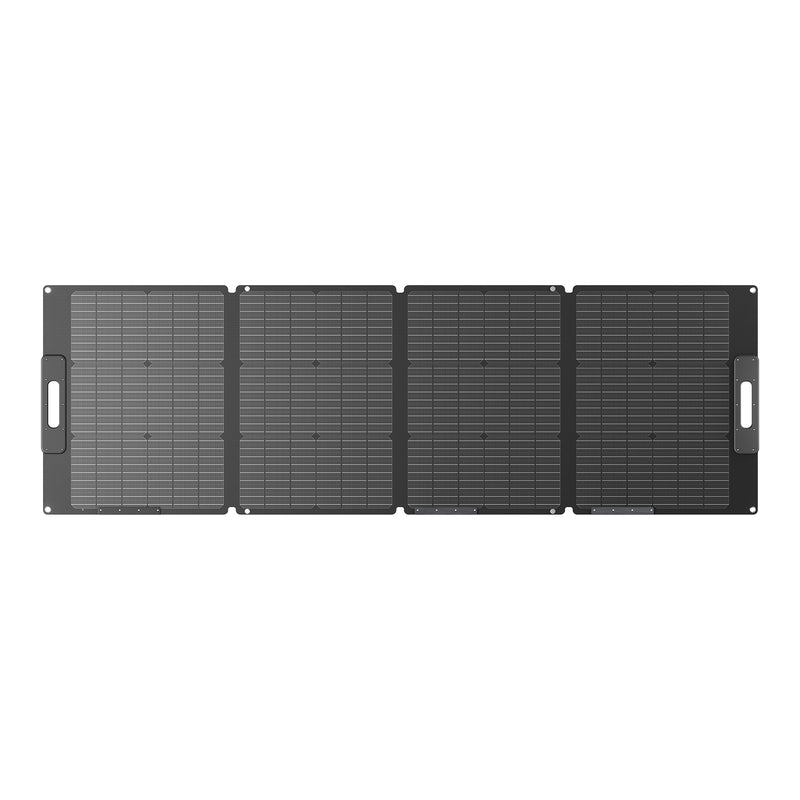

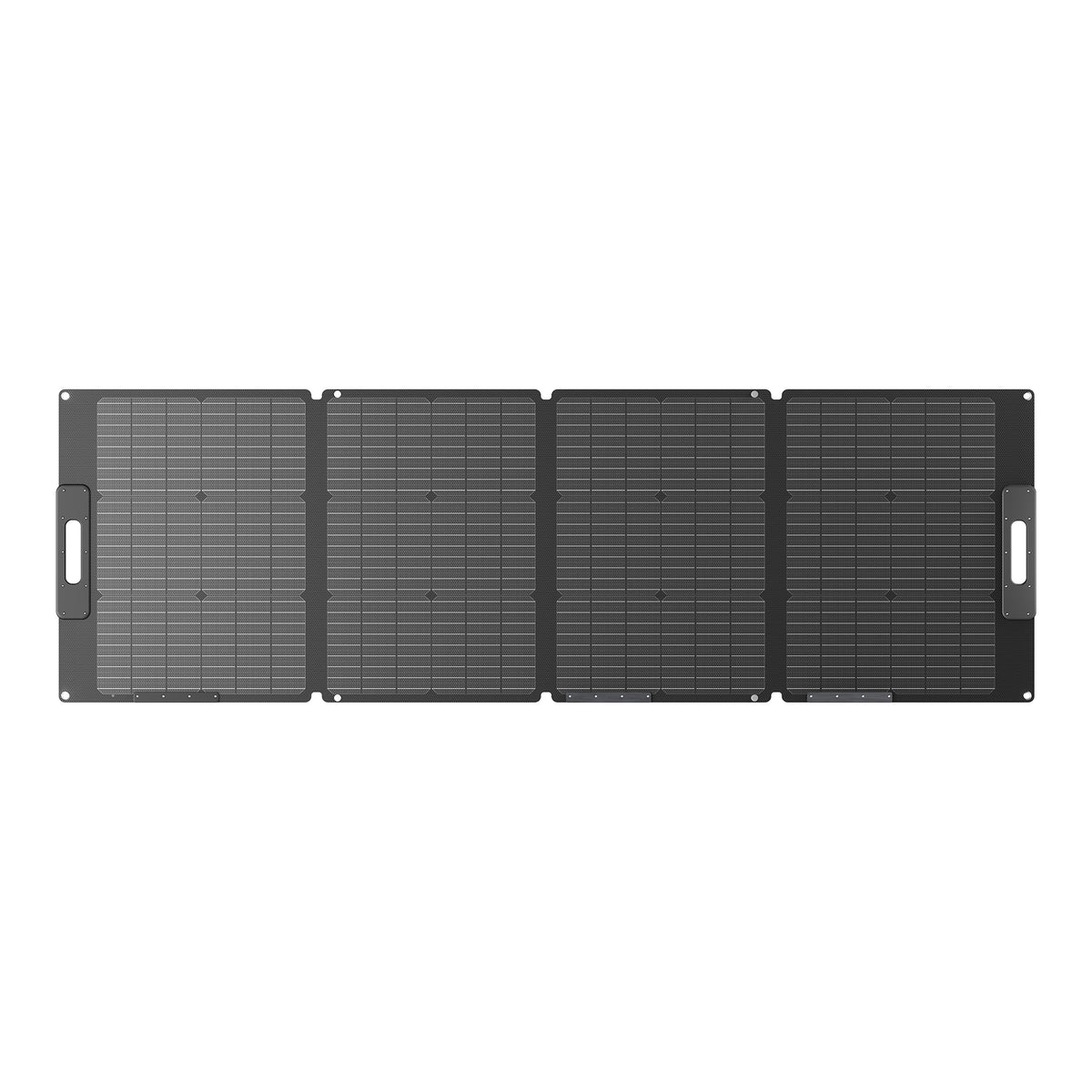

[Phased Out]BLUETTI PV120S Solar Panels | 120W

1 / 7

[Phased Out]BLUETTI PV120S Solar Panels | 120W

Name: [Phased Out]BLUETTI PV120S Solar Panels | 120W
Brand: Bluettipower-AU
SKU: PV120-UG-BK-LS-SPFAU-00
Price: 489.0 AUD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

A$489.00

0 0

Days

:

0 0

Hrs

:

0 0

Mins

:

0 0

Secs

489 reward BLUETTI BUCKS

Monocrystalline Solar Cells With Up to 23.4% Efficiency
Long-lasting ETFE Coating
Foldable & Portable
Compatible With Most Solar Generators with MC4 Connectors
12-month Warranty

Tech Specs

Quantity :

30 Days Price Match Guarantee

BLUETTI guarantees that we will refund you the difference if you find a lower price from us within 30 days of your purchase.

Free
Local Shipping

1-year Hassle Free
Warranty

Lifetime Customer
Support

[Phased Out]BLUETTI PV120S Solar Panels | 120W

A$489.00

Solar Charge Anywhere

Connect it and leave it. BLUETTI 120W solar panel is set to keep your solar generators juiced as long as there is sunlight available.

23.4% High Efficiency

Built with monocrystalline solar cells, the PV120S can convert up to 23.4% of sunlight into solar energy,
charging your solar generators even in bad weather.

Built to Last

The ETFE coating and IP65 junction box are designed to withstand any scratches and watersplash, perfect for camping, fishing, hiking and much more.(Prevent exposure to rain or no soak in water)

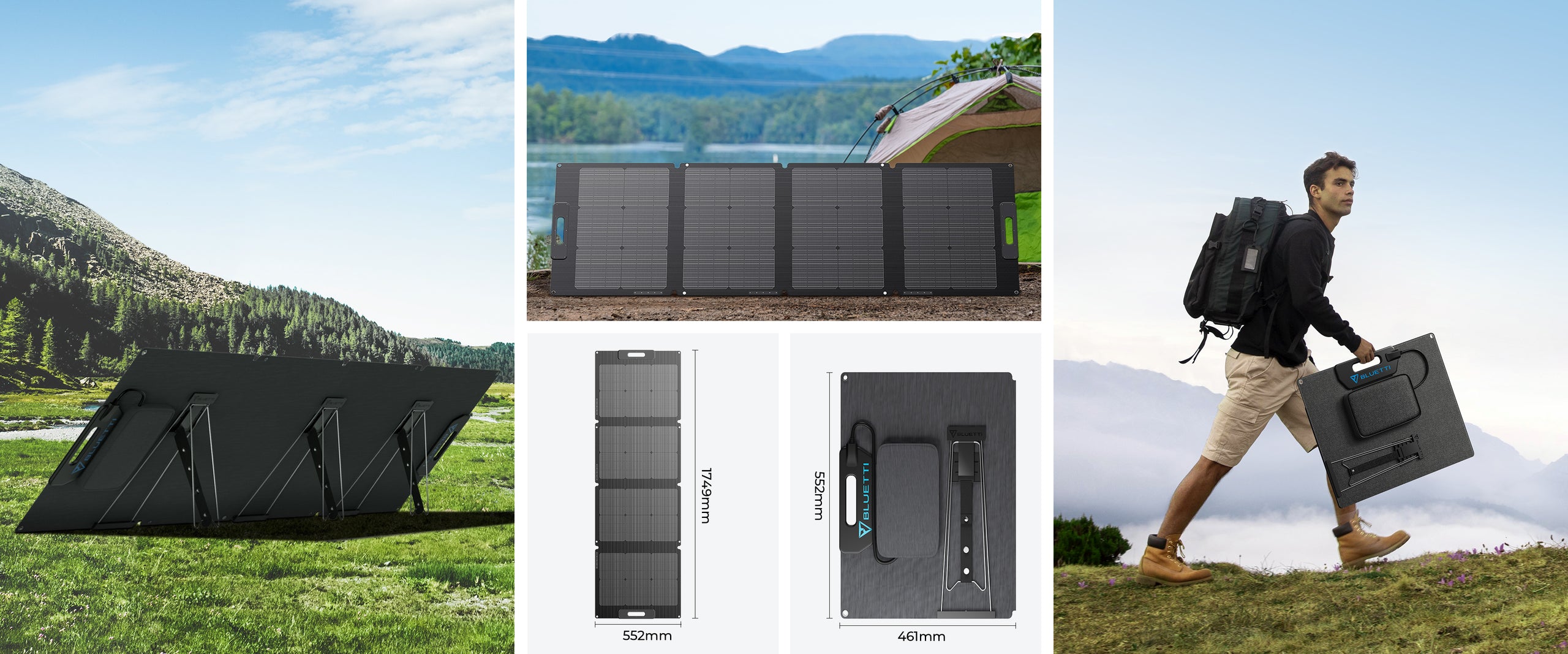

Portable in Every Way

Specifications

PREVIEW

POWER

Power:

120W

Lamination:

ETFE (Ethylene tetrafluoroethylene)

Cell Type:

Monocrystalline Silicon

Cell Efficiency:

Up to 23.4%

Voltage at Max Power(Vmp):

20.9V

Current at Max Power(Imp):

5.74A

Open Circuit Voltage(OCV):

24.8V

Short Circuit Current(Isc):

6.1A

GENERAL

Connector:

Standard MC4 Connector

Weight:

15lbs (6.8kg)

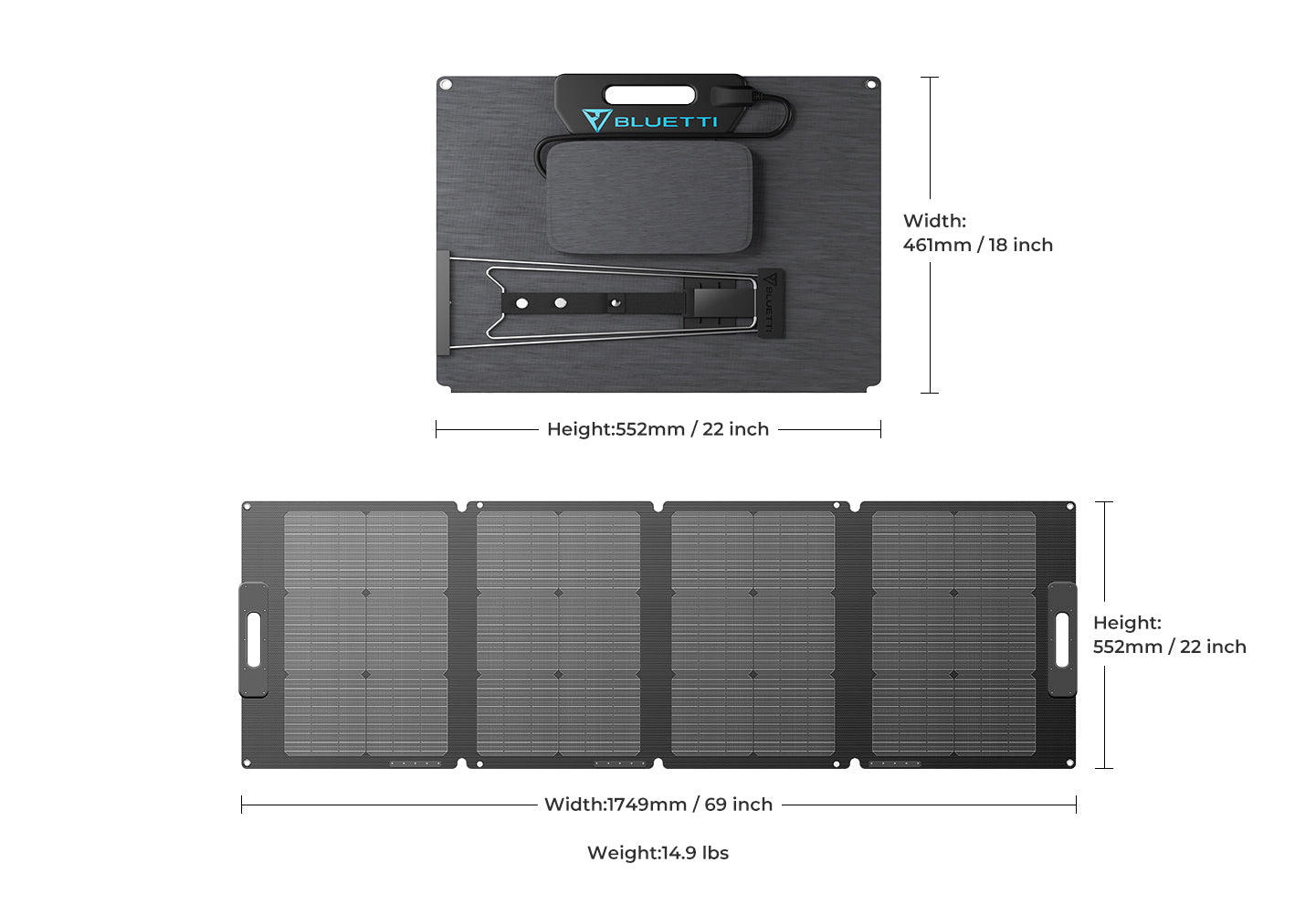

Dimensions (Unfolded):

69 × 22in (1749 × 552mm)

Dimensions (Folded):

18*22in / 461*552mm

Operating Temperature::

14-149℉ (-10-65℃)

Best Working Temperature:

77℉ (25℃)

Cable Length:

118in (3m)

Certifications:

FCC, CE, ROHS

Warranty:

12 Months

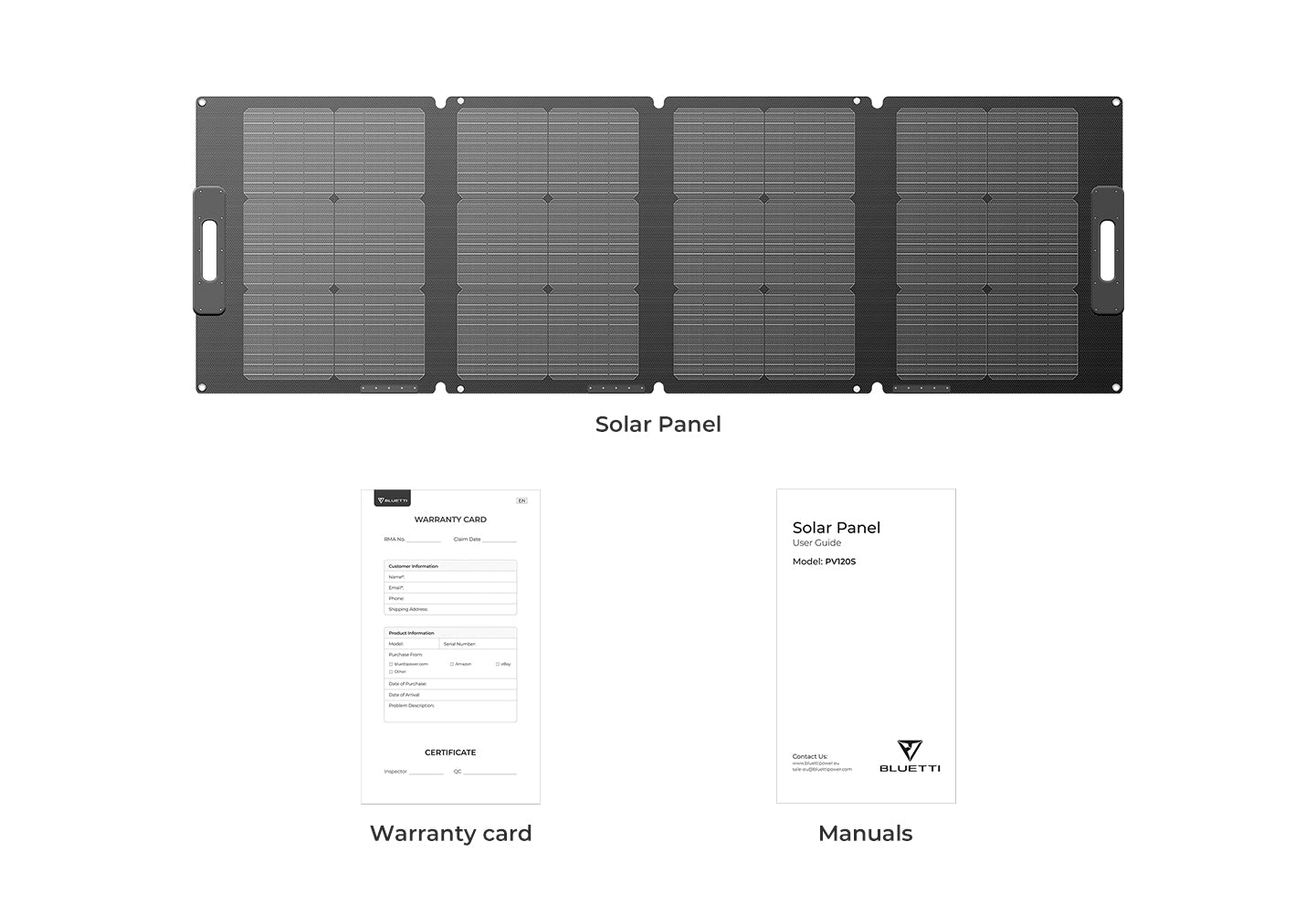

IN THE BOX

User Manual

[Phased Out]BLUETTI PV120S Solar Panels | 120W User Manual

Download Now >

Never Run Out of Power

Suitable for various occasions

Other Top Rated Products

FAQS

Q1: What should I do when using it?

A:

It is recommended to not have any cover when using.
Q2: Is It Waterproof?

A:

Yes, IP65 is rated for junction box, but do not expose the solar panels to rain or snow.
Q3: Can I install it on the roof?

A:

No.
Q4:What is the difference between the PV120S and SP120?

A:

Under the same condition, BLUETTI PV series solar panels produce more power from limited sunlight.*

* Conclusion from BLUETTI Lab, for reference ONLY.
Q5:BLUETTI PV120S compatibility.

A:

Most solar power stations on the market, and one PV120S solar panel is ideal for BLUETTI EB55/EB70/EB3A portable power stations.
Q6: How do I choose solar panels for my solar generator?

A:

Review the PV input requirements of the solar generator.

Review the output specifications of solar panels.

Calculate the total voltage, current, and wattage of solar panels.

Consider the solar input connectors.
Q7: Can I use different size solar panels?

A:

No. Your solar panels should be the same type and rating from one brand. For example, two PV120S to charge BLUETTI AC200P is acceptable, and one PV120S + one SP120 is unacceptable.
Q8 Does the panel have any USB ports you can directly plug into?

A:

No. BLUETTI PV120S only has MC4 connectors.
Q9: How do I maximize the efficiency of solar panels?

A:

These steps will help you get the most out of your solar panels:

1. Set up your panels correctly: The orientation as well as the angle it tilts at should be right.

2. Avoid shadow areas: Any amount of shadow will affect solar panel production.

3. Keep your panels clean: Dirt or debris reduces the panel’s efficiency.

4. Don’t get panels too hot: Good air circulation or a cool atmosphere around panels will help.
Q10: Can AC200MAX be recharged with solar panels and wall outlet simultaneously or dual AC adapters?

A:

YES.
