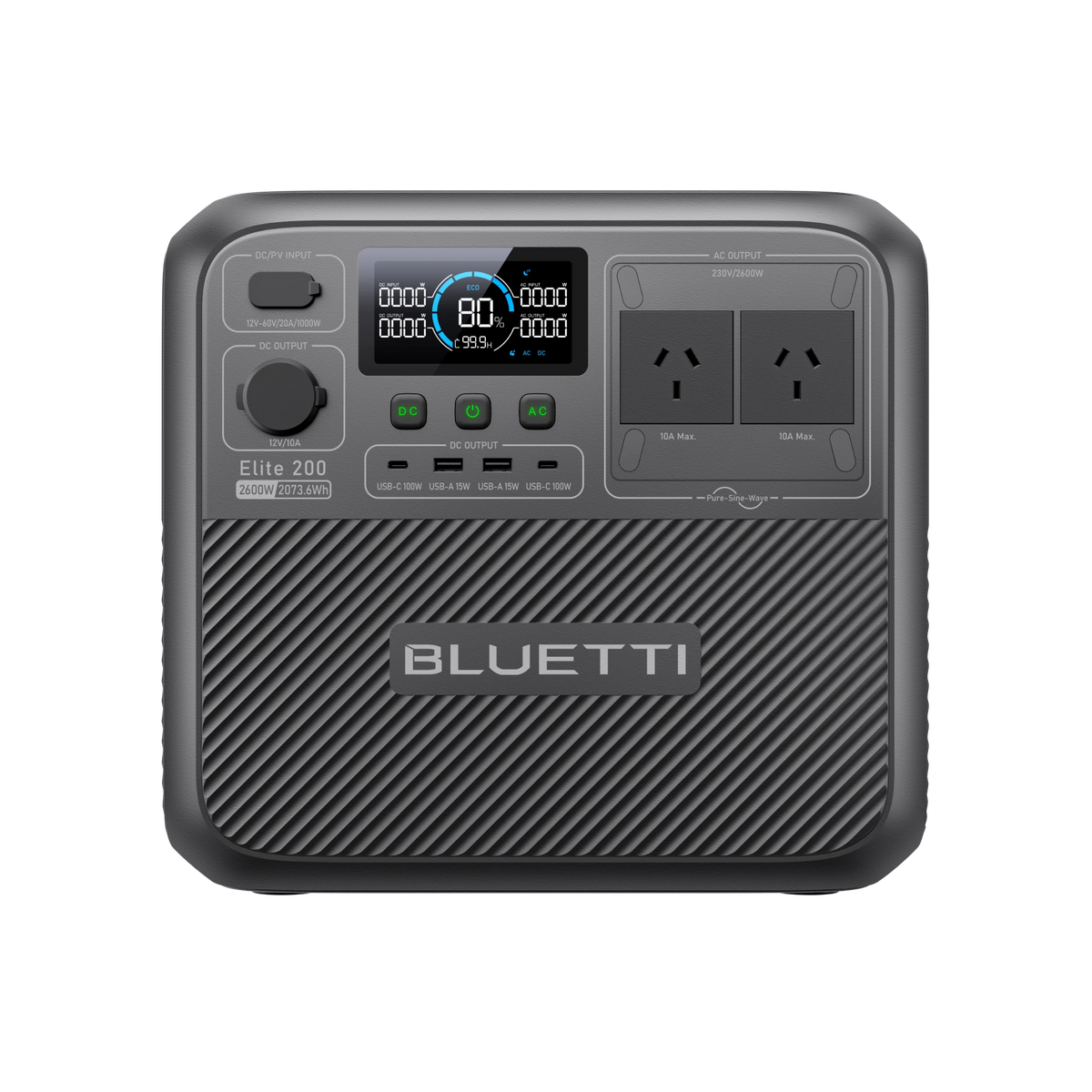

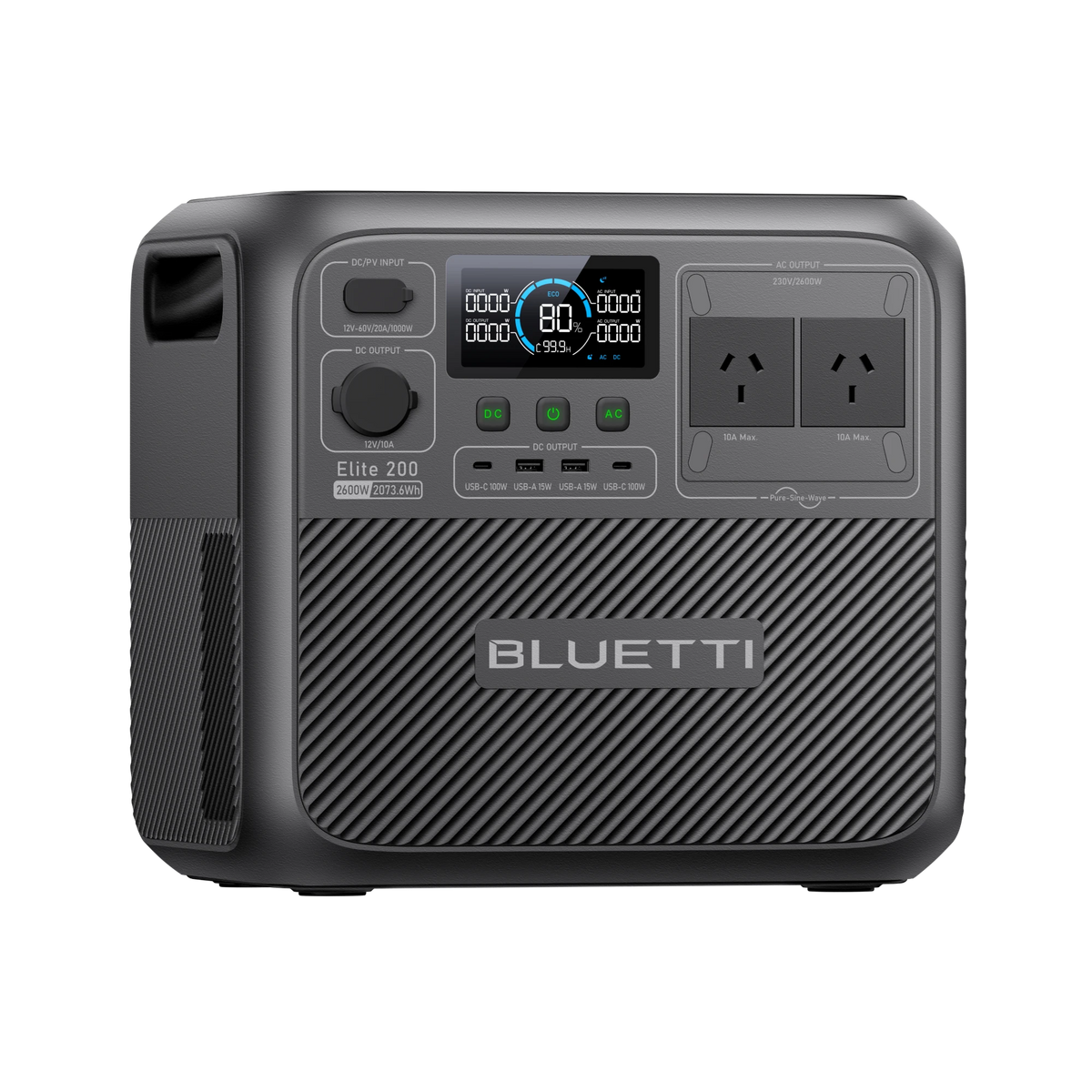

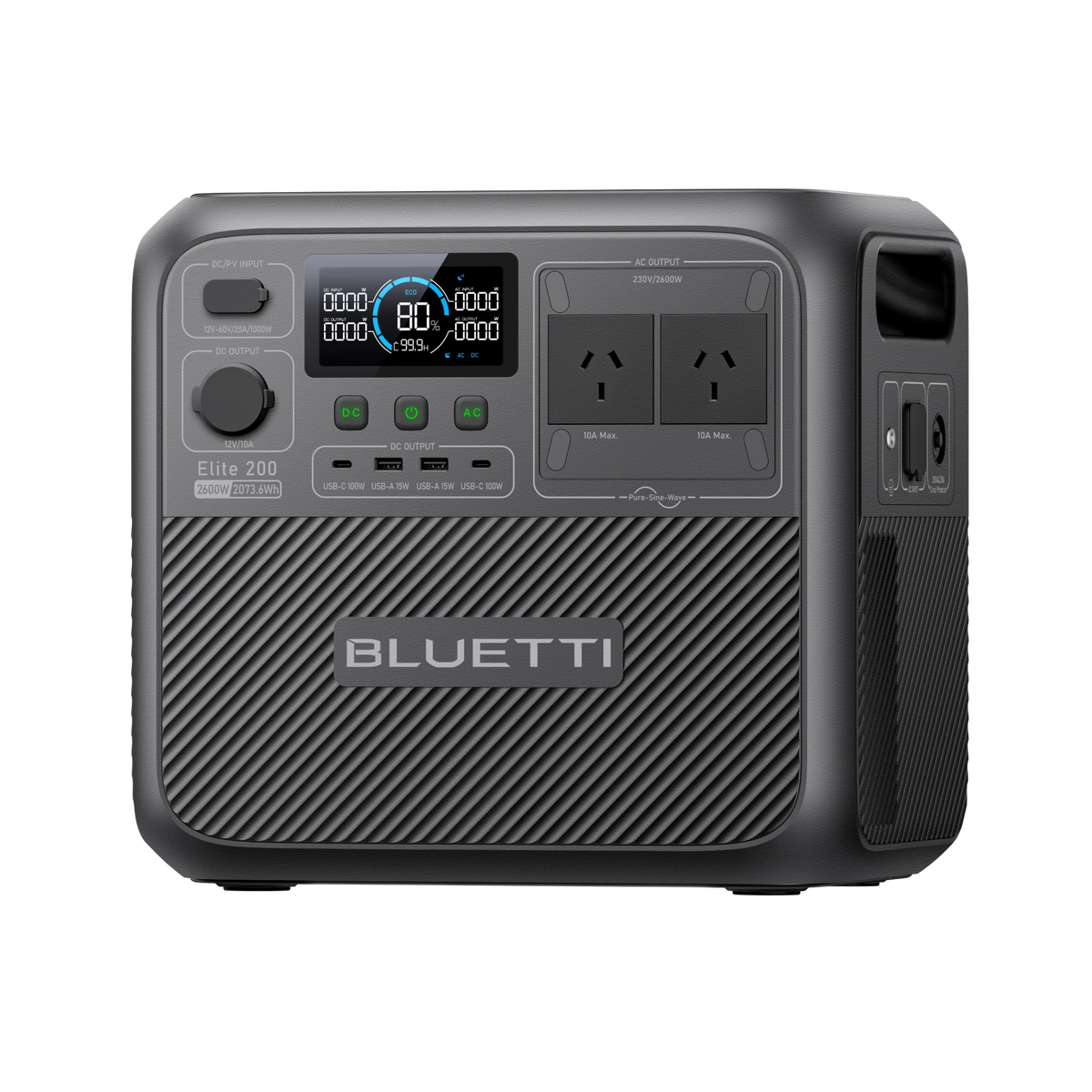

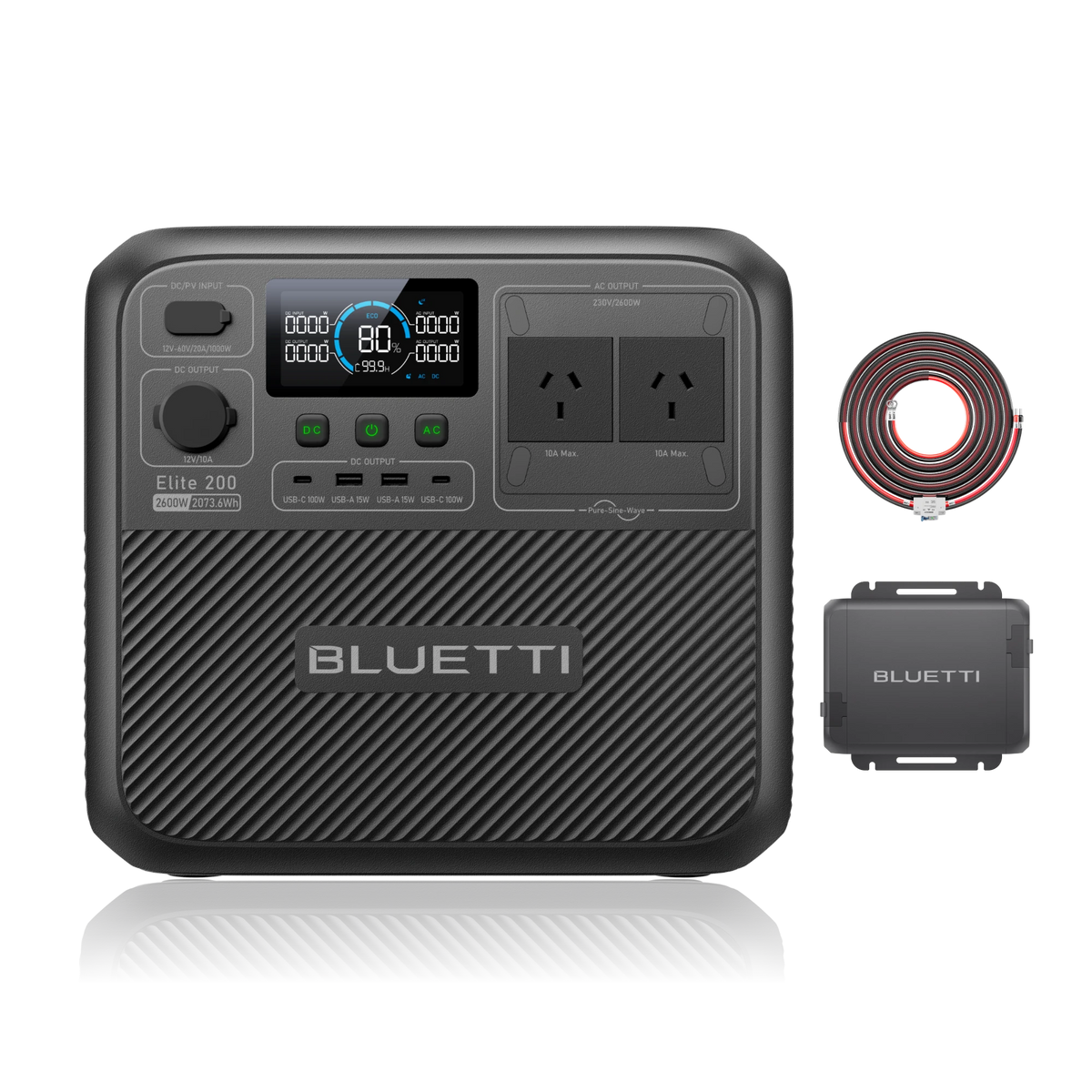

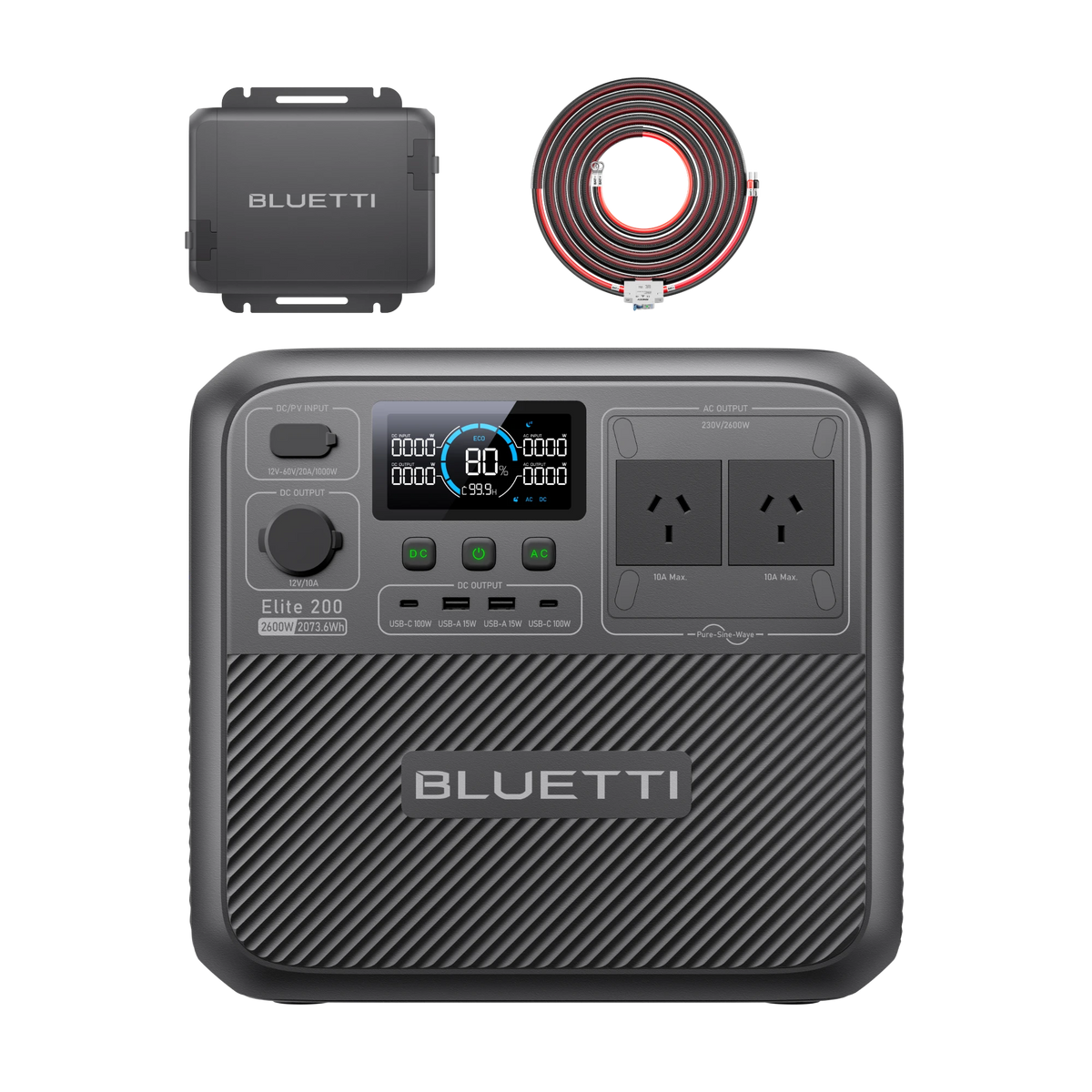

BLUETTI Elite 200 V2+Charger 1 Alternator Charger

FAQS

• Q1: What are the differences between Elite 200 V2 and AC200L?

  A:

  • Battery Capacity: Elite 200 V2: 2.073,6Wh | AC200L: 2.048Wh
  • AC Output: Elite 200 V2: 2.600W | AC200L: 2.400W
  • AC Input Power: Elite 200 V2: 2.300W Max. | AC200L: 2.400W Max.
  • PV Input: Elite 200 V2: 1.000W Max., 12V to 60V, 20A Max. | AC200L: 1.200W Max., 12V-145VDC, 15A

• Q2: Is the Elite 200 V2 expandable with B80, B300K, or B230?

  A:

  The Elite 200 V2 itself is not expandable and does not support power bank mode.

• Q3: Does Elite 200 V2 have a UPS function?

  A:

  Yes, within 15ms. It supports 4 UPS modes:

  • Standard UPS mode: Default, maintain SOC at 100% all the time, mainly used as a backup system.
  • Time control UPS mode: Recommended for areas with large peak-to-valley price differences in the power grid.
  • PV priority UPS mode: Recommended for areas with sufficient photovoltaic power.
  • Custom UPS mode: Combines the above 3 modes for customers to choose freely.

• Q4: Is Elite 200 V2 waterproof?

  A:

  No. Please store and use it in a cool and dry place.

  Operating humidity: 10% to 90%.

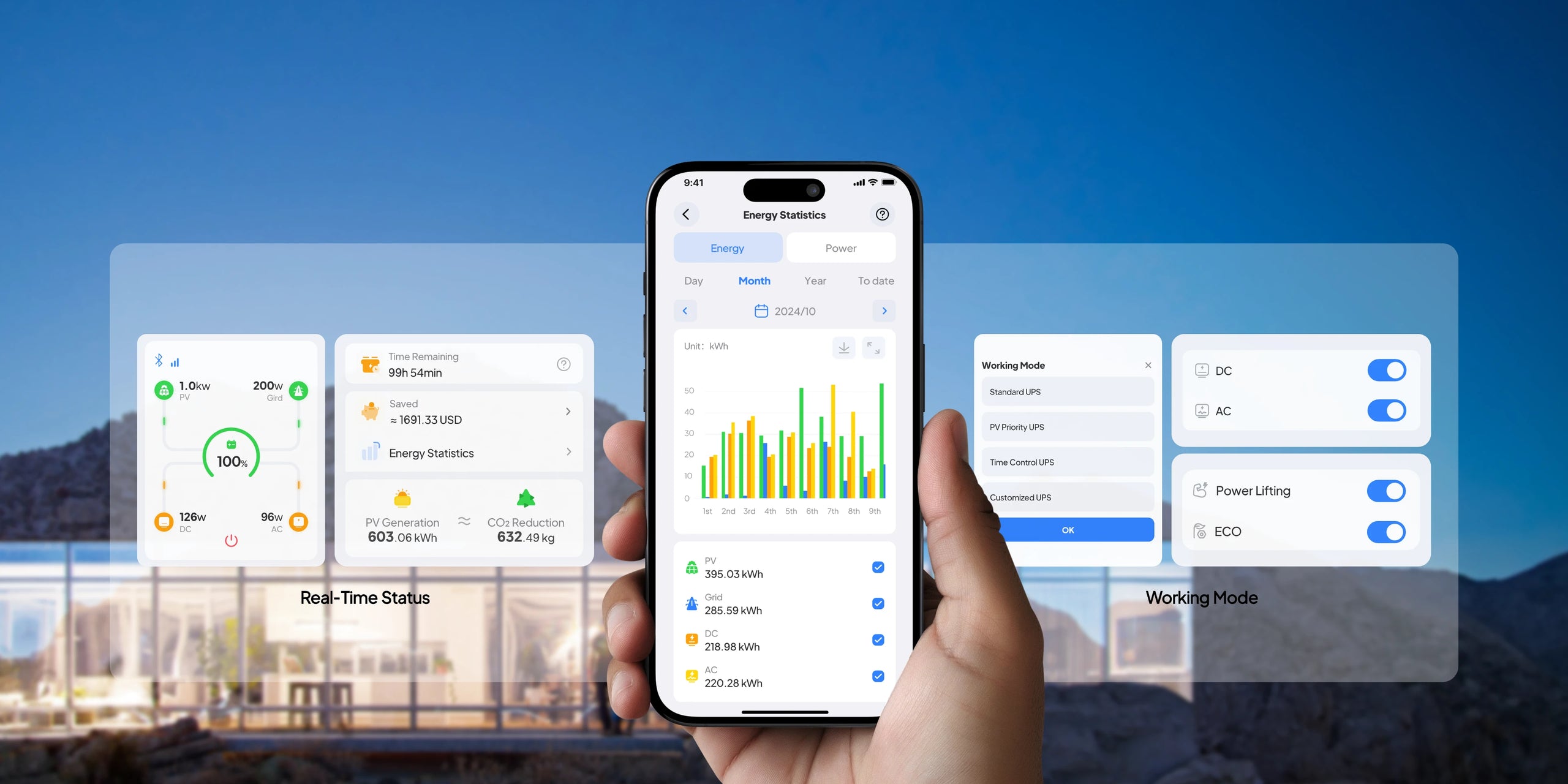

• Q5: Does Elite 200 V2 support remote app control?

  A:

  Yes, you can connect the app via Bluetooth or WiFi.

• Q6: Is it possible to use third-party solar panels?

  A:

  Yes, as soon as the solar panels meet the following conditions:

  • Total VOC: 12V to 60V
  • Total power: 1,000W Max.
  • With MC4 connectors

• Q7: What is system switch recovery mode?

  A:

  When this function is turned on, the on/off settings of AC and DC outputs will be memorized when the SOC drops to 0%. Once the SOC recovers to 5%, the settings will automatically return to the original settings.

• Q8: What is visitor access function?

  A:

  When this function is disabled, the Bluetooth direct connection machine can only view basic information and cannot perform any control operations.

• Q9: What is Bluetooth Connection Password function?

  A:

  After setting the password lock, you need to enter the password to connect to the machine when connecting via Bluetooth. This function prevents accidental connections and controls by strangers.

• Q10: How long will the Elite 200 V2 power the devices?

  A:

  Estimated runtime = Total capacity × Depth of discharge (DoD) × inverter efficiency ÷ (Load power + Elite 200 V2 self-consumption)

  Note:

  • DoD = 90%, η = 85%
  • The Elite 200 V2 self-consumption is about 15W.
  • The above data is for reference ONLY.

• Q11: Can the Elite 200 V2 charge and discharge at the same time?

  A:

  Yes, it supports pass-through charging.

• Q12: Is the machine display a touch screen?

  A:

  No.

• Q13: How long does it take to fully charge the Elite 200 V2?

  A:

  Estimated charging time = (Total capacity ÷ Charging power) + Trickle charge time.

  The trickle charge time for BLUETTI power station is typically 0,5 to 1 hour.

• Q14: Can I charge the Elite 200 V2 from solar panels, a car, and AC power simultaneously?

  A:

  Not quite. The Elite 200 V2 has only one DC input port, so you can charge it using either AC power with solar panels or AC power with a car charger, but not all three at the same time.
